Pro 5000
Model Number
13644
$197,174
Create a vibrant, healthy, and active outdoor obstacle course that introduces people to physical fitness - and to one another.

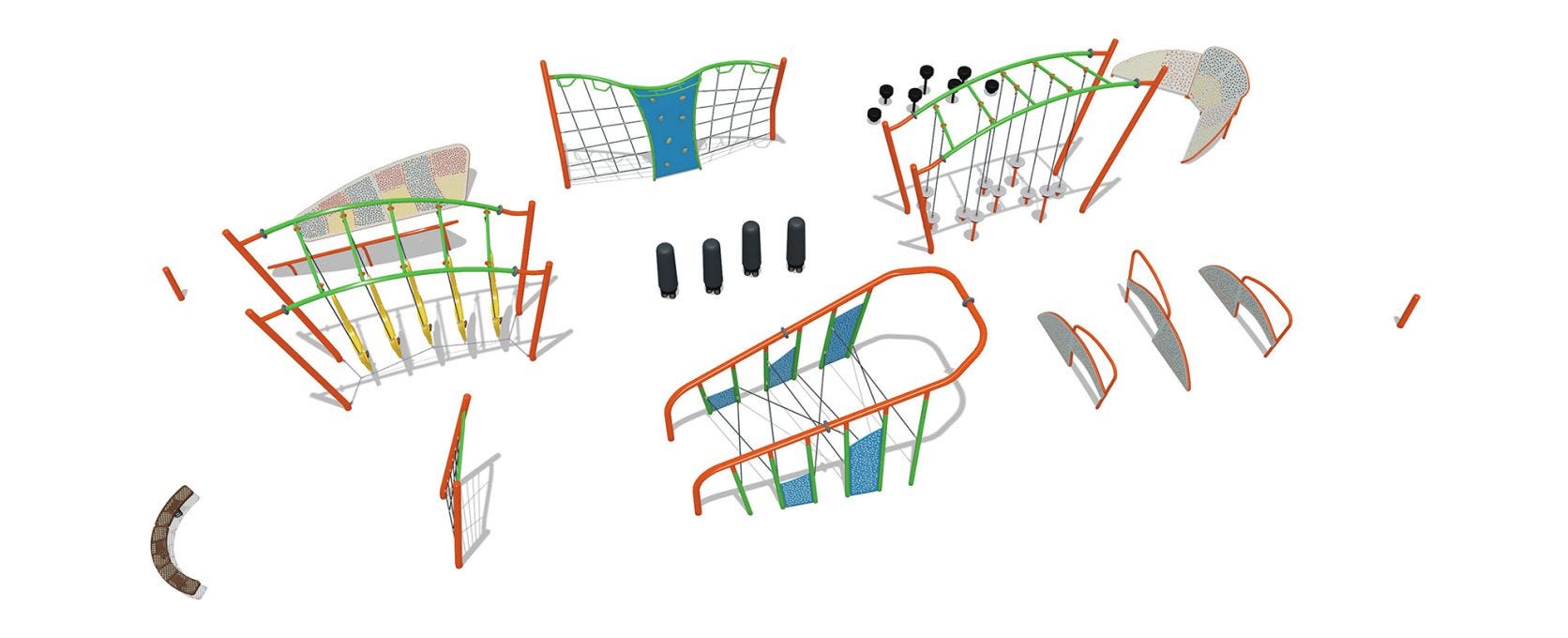

The Challenge Course by GameTime is an outdoor obstacle course the whole family can enjoy together. From young children in elementary school to older teens and adults, there is something on the course to keep everybody active and engaged.
Specifications
- Encourages multigenerational play and friendly competition
- Provides an engaging fitness experience that promotes community wellness
- More than 15 color options available
- Constructed of durable materials and backed by the industry's leading warranty
| Use Zone (Length x Width) | 49'-0" x 94'-0" (14.93m x 28.65m) |
|---|---|
| Age Ranges | 13+ Years |
| Fall Height | 10' (3.05 m) |
| Weight | 11058 lbs (5,014.97 kg) |
- 2-3/8” O.D. x .109, 1-1/16" O.D. x .072", 1-5/8” O.D. x .083, 5” O.D. x 0.180”, 1-5/16" O.D. x .083", 2-3/8" O.D. x 0.154, 5-1/2" O.D. x 1'-0-1/2", 2-3/8” O.D. x 0.134”, 2-3/8" O.D. x .095”, 3-1/2" O.D. x .095", 5" O.D. x 0.120 and 6" O.D. x 0.109 galvanized pipe
- 3/16" x 3"-thick cold rolled steel
- 2-3/8" LG. tabs
- 32510 malleable iron
- 3/16" stainless steel
- .109” and .120" punched galvanized steel
- 303 stainless steel plates
- 8” x 5” x.25” thick metal plate
- 1/4" x 6", 3/16" x 1-1/4", 1-1/4” x 1/4” x 1/4”, 1-1/4” x 1/4” x 1/2”, 2” x 1-7/8” x 3/16”, 1/2 " x 2", 3/16" x 5-1/2", 2/4", 3/8", 3/16", 3/16" x 6", and 3/4"-thick hot rolled steel
- 4.95lb, 9.25lb, and 3.31lb Polyurea Spray
- 1/2" and 3/4” thick high density, UV-stabilized, and color-impregnated polyethylene
- color-impregnated, linear, low density Polyethylene
- 18mm and 19mm dia. polyamide (Nylon) rope cable with UV protection
- #80 4/0 straight link coil stainless steel
- GTX engineered rubber
- 3/4" diameter wire
- Steel spring
- All-weld construction
- Coated after fabrication with a custom formula of PVC and TGIC polyester powder
