Zip Slide - 4'
Model Number
18393
$7,558

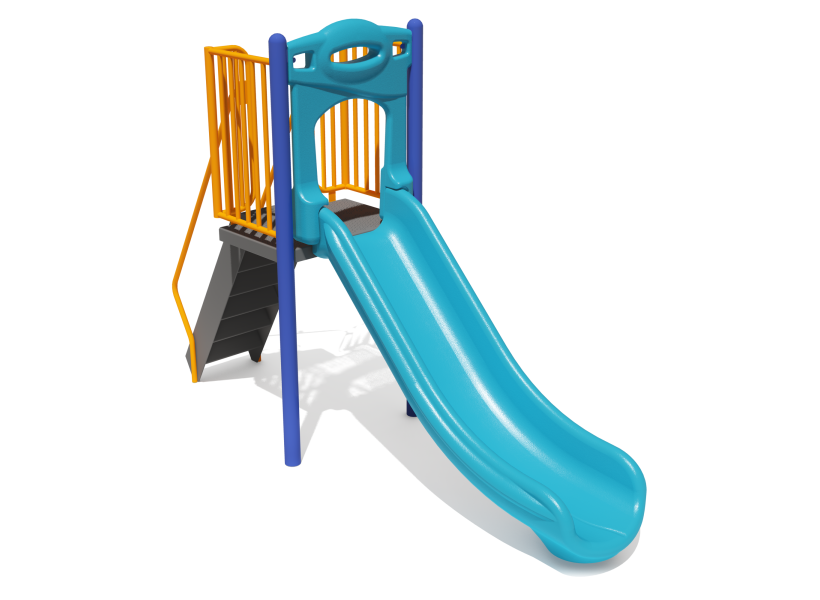

Exhilarate your playground with GameTime's 4' Zip Slide! The rotationally molded slide features double-wall construction which makes it a durable addition to any play space. The integrated slide hood features a cross bar that provides assistance as users move into a seated position and a peer-through window that allows users to view the bedway prior to sliding. The angled run-out and integrated drain reduce pooling of water to decrease maintenance needs.
Specifications
- One-piece rotationally molded slide
- Double-wall construction
- Rotationally molded hood and cross bar forces users to seated position
- Slide hood peer-through window allows users to view bottom of slide
- Slide hood integrated cross bar provides assistance when moving into seated position
- Smooth transition from slide chute to bedway exit
- Angled run out with integrated drain to reduce pooling of water
- Slide bolts directly to deck and slide hood
| Use Zone (Length x Width) | 23'-1" x 15'-3" (7.04m x 4.65m) |
|---|---|
| Age Ranges | 2 to 5 Years, 5 to 12 Years |
| Fall Height | 4' (1.22 m) |
| Suggested Number of Users | 2 |
| Weight | 557 lbs (252.61 kg) |
- 1-5/16" O.D., 1-5/16" O.D. x .083", and 1-1/16" O.D. x .075" wall galvanized steel tubing
- 3.5" O.D. x 1/8" aluminum tubing
- 6005-T5 aluminum alloy
- 24" x 45-1/2" rectangular deck
- .109" and .120" punched steel
- 1/8" x 2 ½" and 1/8" hot rolled steel
- Protective P&O finish
- color-impregnated linear low-density polyethylene
- All-weld assembly
- Coated after fabrication with a custom formula of TGIC polyester powder coating and an oven cured matte finish PVC coating
