Youth 5000
Model Number
13647
$164,211
Create a vibrant, healthy, and active outdoor obstacle course that introduces people to physical fitness - and to one another.

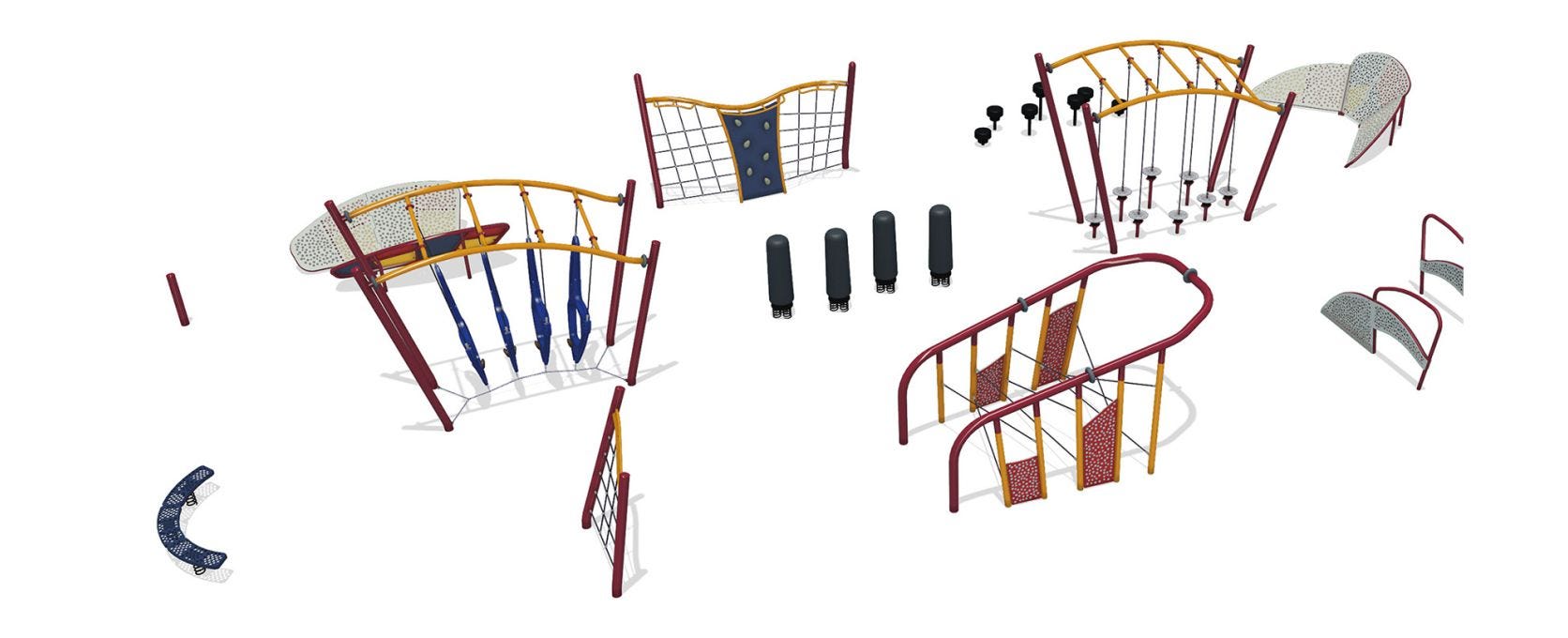

The Challenge Course by GameTime is an outdoor obstacle course the whole family can enjoy together. From young children in elementary school to older teens and adults, there is something on the course to keep everybody active and engaged.
Specifications
- Encourages multigenerational play and friendly competition
- Provides an engaging fitness experience that promotes community wellness
- More than 15 color options available
- Constructed of durable materials and backed by the industry's leading warranty
| Use Zone (Length x Width) | 52'-0" x 88'-0" (15.85m x 26.82m) |
|---|---|
| Age Ranges | 5 to 12 Years |
| Fall Height | 8' (2.44 m) |
| Weight | 9625 lbs (4,365.08 kg) |
- 1.315” O.D. x 0.083”, 1-5/16” O.D. x 0.133, 1-5/16" O.D. x .083", 1-5/16” O.D. x 0.133, 5" O.D. x 0.1875, 1.66” O.D. x 0.083, 1.66” O.D. x .095”, 2-3/8" O.D. x 0.154", 5" O.D. x 0.258, 2-3/8 O.D. x .109, 2-3/8” O.D. x 0.134”, 3-1/2" O.D. x .095", 1-1/16” O.D. x .072, 2-3/8" O.D. x .095”, 6" O.D. x 0.109, 5" O.D. x 0.1 20, 1-5/8" O.D. and 5' O.D. galvanized steel tubing
- 2-3/8" O.D. schedule 40 tubing
- 1-1/4" and 1-1/2" galvanized pipe
- 3/8"-thick plates
- 1/2 " x 2", 1” x 1/4" x ¼”, 3/16" x 6", 1/8", 2/4", 3/16", 3/4", 1/4” x 1/2”, and 12 gauge hot rolled steel
- 3/16" x 3"-thick cold rolled steel
- 2” x 1-7/8” tabs
- 2” x 1-7/8”, 2-3/8", and 1-1/4” LG. tabs
- 3/4" HDPE Densetec
- 1/2"-thick D.H.P.L
- 3/16" stainless steel
- 1/2"-thick high density, UV-stabilized, and color-impregnated polyethylene
- Silk-screening
- Polyurea spray
- .109” punched galvanized steel
- Steel spring
- #80 4/0 straight link coil stainless steel
- 19 and 18mm dia. polyamide (Nylon) rope cable
- Linear, low density polyethylene
- A356 alloy
- All weld assembly
- Coated after fabrication with a custom formula of PVC and TGIC polyester powder
