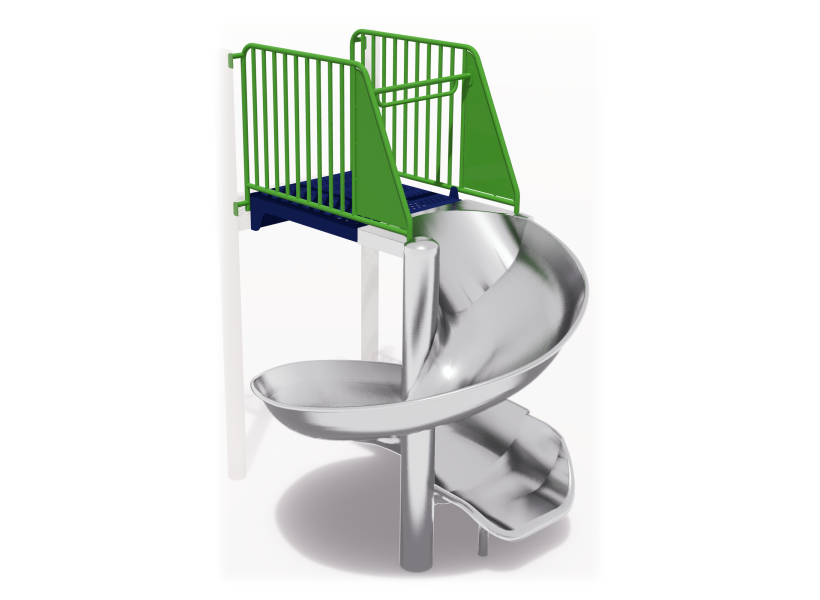

Stainless Steel Spiral Slide
Model Number
90464
$0
Available at 4' (90462), 5' (90463), & 6' (90464)
Specifications
| Age Ranges | 5 to 12 Years |
|---|---|
| Fall Height | 7' (2.13 m) |
| Suggested Number of Users | 2 |
| Weight | 1362 lbs (617.69 kg) |
- 1-5/16" O.D. x .083", 1-1/16" O.D. x .075", and 2" wall galvanized steel tubing
- .078" type 304-2B stainless steel
- 8" x .109" stainless steel tubing
- 1/2"-thick solid stainless steel
- 1/4"-thick cast aluminum
- .120"-thick hot rolled flat steel
- 30" minimum outside radius
- Minimum tensile strength: 95,000 psi
- Minimum yield strength: 40,000 psi
- Oven cured matte finish PVC coating
- Minimum coating thickness of .125"
- All weld assembly
- Coated after fabrication with a custom formula of TGIC polyester powder coating
