8-Post Canopy Square Deck - 3-Deck
Model Number
91543
$0

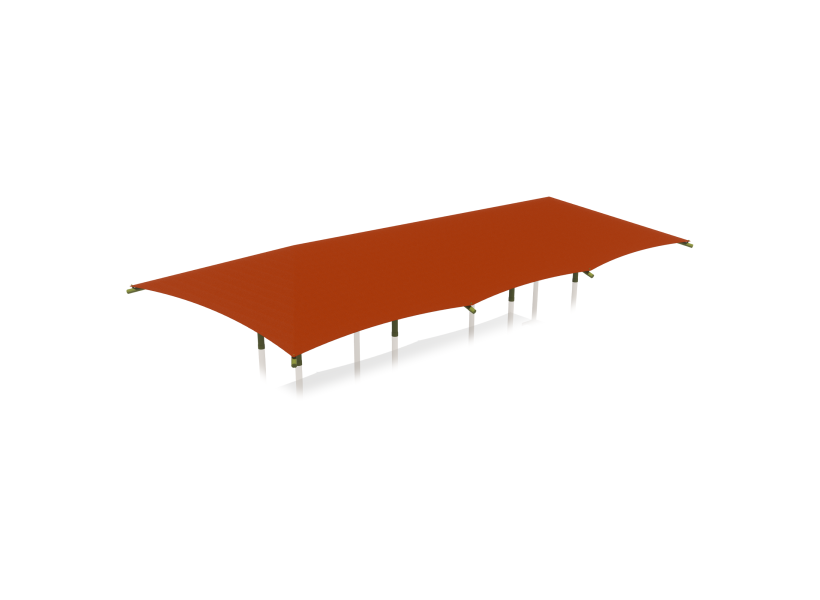

PowerScape integrated 18' x 39' rectangular canopy covering a 3 deck span. Perfect for ramped, linked or bridged PowerScape systems.
Specifications
- Blocks up to 97% of harmful UV rays
- Cools covered area by as much as 25° (14° C)
- Available QuickRelease™ system makes it fast and easy to adjust or remove fabric
- Compliant with local building codes in US and Canada
| Age Ranges | 2 to 5 Years, 5 to 12 Years |
|---|---|
| Suggested Number of Users | 25 to 30 |
| Weight | 1148 lbs (520.63 kg) |
- 5" O.D. x .12" and 2 7/8" O.D. x .134" galvanized steel pipe
- 19 1/4" diameter x 1/4", 16 1/8" diameter x 1/4", 6" diameter x 3/16", 5" x 3/8" x 2 3/4", 6 15/16" x 3/8" x 7 5/16", 3 1/8" diameter x 1/4", 2 1/2" x 1/4" x 2 3/4", 5" diameter x 3/16", 4 11/16" x 3/8" x 3 1/6", 5", and 2 15/16" x 3/8" x 5 7/8" hot rolled steel plates
- Wire rope (1/4" nominal diameter, 7 strand, 19 wires per strand (minimum), nominal tensile strength of 9,000 lbs.)
- high-density polyethylene
- Ultra violet additives
- Monofilament and tape construction
- 383 die cast aluminum alloy
- All-weld assembly
- Coated with a custom formula of TGIC polyester powder
