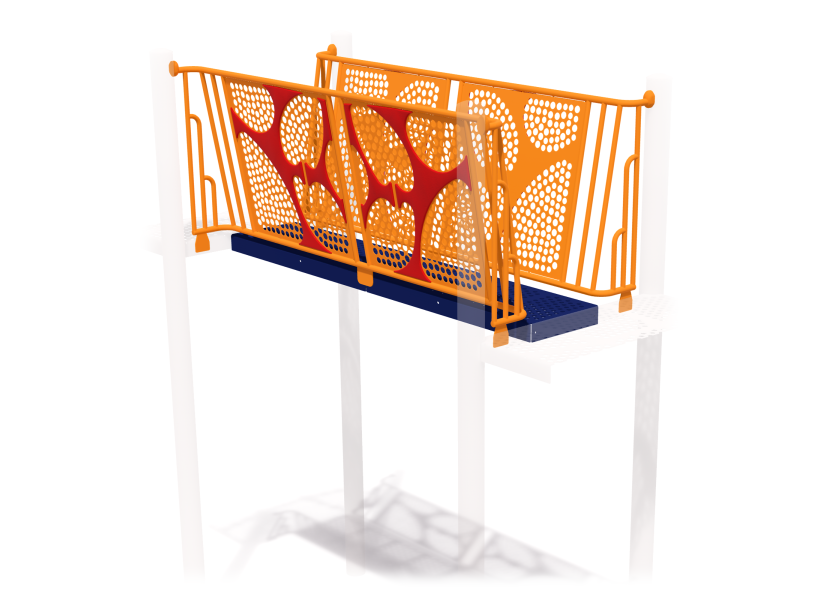

Funnel Bridge (3D) - 2-Deck
Model Number
91017
$0
Design Features:
Consistent PowerScape 3D design language Handrail is wider than the footpath, creating a funnel appearance Available in any combination of metal and HDPE colors
Benefits:Provides a stylish way to link two sections of the play system Bridges offer a fun way to explore the play system Connects a system across a two-deck span (8')
The PowerScape 3D Funnel Bridge is a stylish take on our standard Funnel Bridge. Routed HDPE and punched steel pattern is consistent with the rest of the 3D enhancement products and is backed by the industry's leading warranty.
Specifications
| Age Ranges | 2 to 5 Years, 5 to 12 Years |
|---|---|
| Fall Height | Deck Height |
| Suggested Number of Users | 30 to 35 |
| Weight | 586 lbs (265.76 kg) |
- 1-5/16" O.D. x .083" and 1.029" O.D. x .072" wall galvanized pipe
- .083" x 1.5" galvanized steel purchased pipe cap
- 3/16" hot rolled steel
- .083" punched galvanneal steel
- 1/2"-thick (solid) high-density, UV-stabilized and color-impregnated polyethylene
- All-weld assembly
- Coated after fabrication with a custom formula of TGIC polyester powder coating
