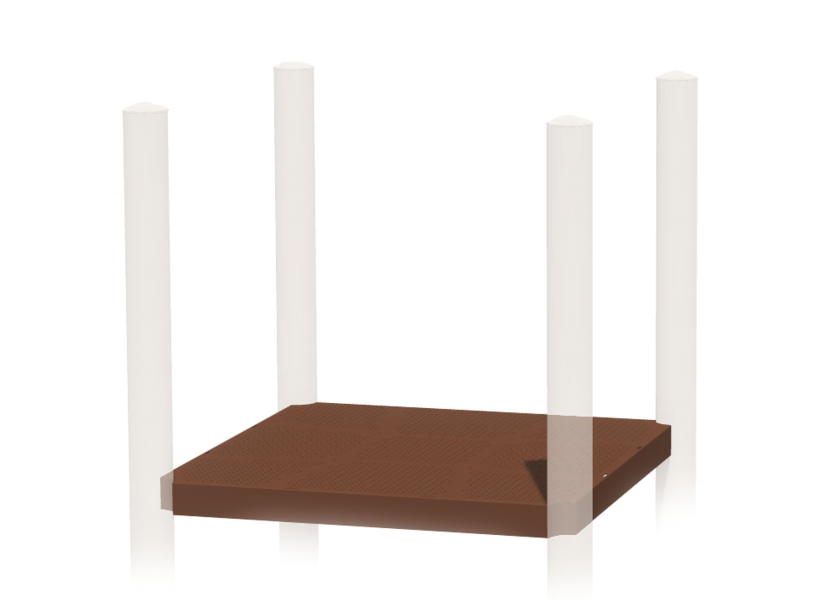

Accessible Punched Steel Deck
Model Number
16700
$0
The ADA Accessible Deck can be used by all children of all abilities. Compatible with your PowerScape system.
Specifications
- Available in 49" square (#16700) and a 49" triangle (#16701)
| Age Ranges | 2 to 5 Years, 5 to 12 Years |
|---|---|
| Fall Height | Deck Height |
| Suggested Number of Users | 40 to 45 |
| Weight | 141 lbs (63.95 kg) |
- 3/16" x 3-1/2", 1/4" x 3-1/2", and 1/8" x 2-1/2" hot rolled steel
- Minimum surface area of 2,381 square inches
- 49" center to center spacing on the upright posts
- 12" support grid underneath the entire deck surface
- One-piece welded assembly
- Coated after fabrication with an oven cured matte finish polyvinyl chloride (PVC) coating
- Directly bolted to the upright posts with eight 3/8" diameter button-pin-in-head, hex socket cap screws
