3D Accessible Ramp Link
Model Number
91058
$0
Benefits:
Adds an accessible method of exploration from one section of the play system to another

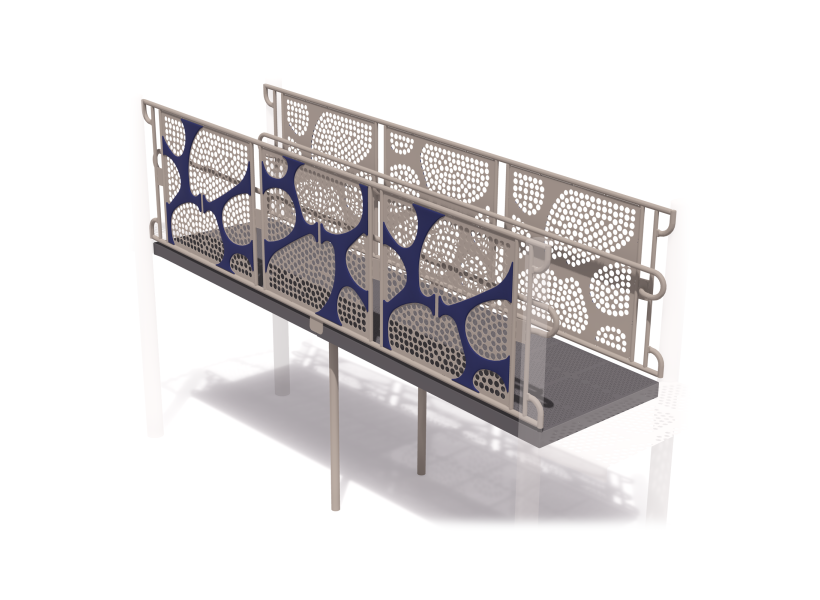

Add accessibility for mobility devices with this 3D version of our PowerScape Ramp Attachment. For use when transitioning from one section of the play structure to another. HDPE panels and punched steel design matches other PowerScape 3D components.
Meets DOJ (Department of Justice) 2010 standard for accessible design
Available at 1'-6" & 2' (91049), 2'-6" & 3' (91056), 3'-6" & 4' (91057), 4'-6" & 5' (91058), 5'-6" & 6' (91059), 6'-6" & 7' (91060), 7'-6" & 8' (91061)
Specifications
- HDPE and punched steel design create a fun, 3-dimensional look
- Handrails provide additional support for people walking with or without mobility devices
| Age Ranges | 2 to 5 Years, 5 to 12 Years |
|---|---|
| Fall Height | 5' (1.52 m) |
| Weight | 1094 lbs (496.15 kg) |
- 1-5/16" O.D. x .083" and 1- 1/16" O.D. x .075" wall galvanized steel tubing
- 2 3/8" O.D x .095 light wall galvanized steel pipe
- 3/16" x 2" and 3/16" x 3" hot rolled steel
- 3/16" x 2 1/2" x 4 1/2" stainless steel
- 14 gauge punched steel
- 1/2"-thick high-density, UV-stabilized and color-impregnated polyethylene
- Matte PVC coating
- Protective P&O finish
- All-weld assembly
- Coated after fabrication with a custom formula of TGIC polyester powder coating
